Finger Print Scanner (FS88H)

https://erp.barcode.com.np//web/image/product.template/2772/image_1920?unique=5918930

Login to see price

Not Available For Sale


This combination does not exist.

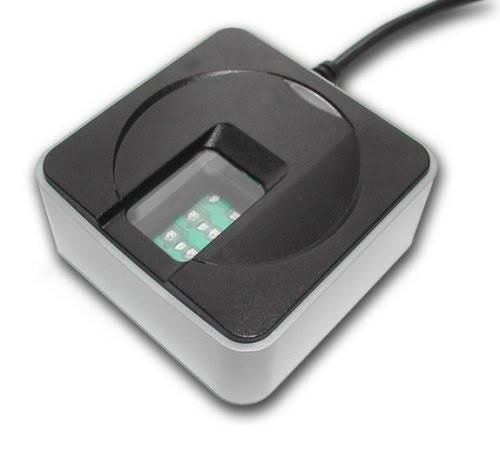

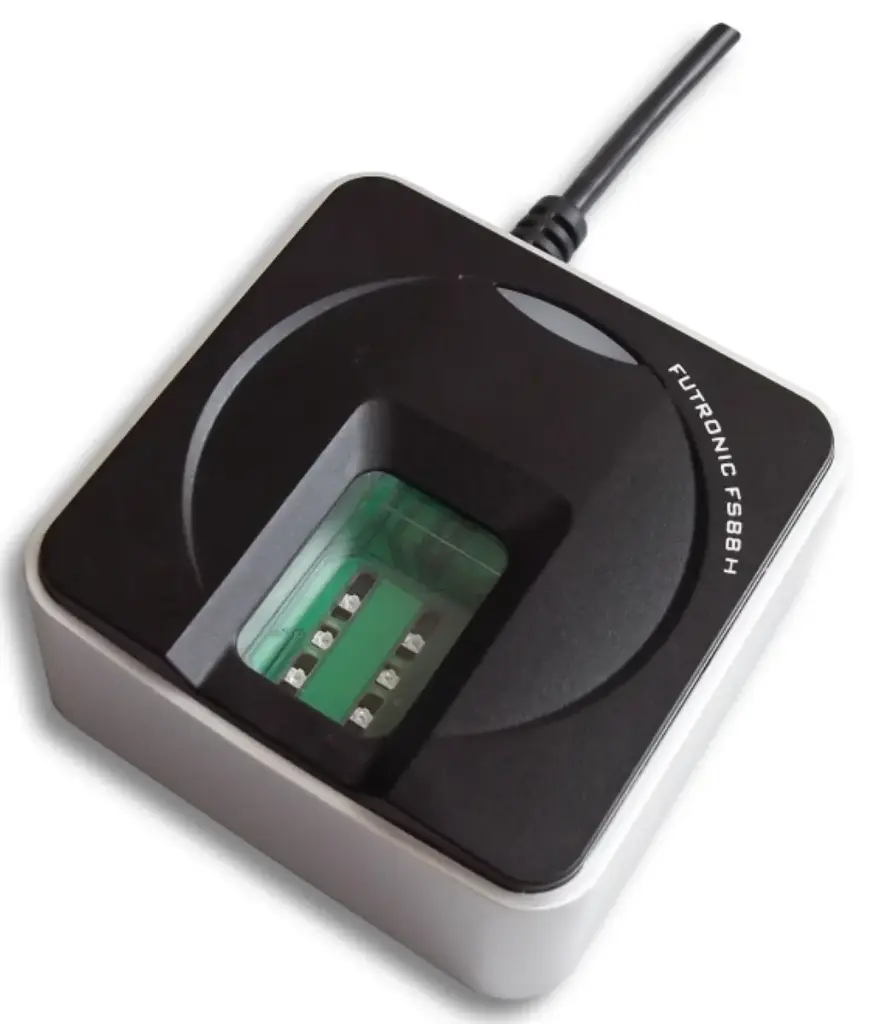

FS88H is an enhanced version of FS80H USB2.0 Fingerprint Scanner from Futronic. It was certified by FBI to be compliant with PIV -071006 Image Quality Specification for Single Finger Reader. So FS88H meets the US Federal Information Processing Standard 201 (FIPS 201) for Personal Identification Verification (PIV) of Federal Employees and Contractors. It is also listed in the US General Services Administration (GSA) FIPS 201 Evaluation Program Approved Product List.

Key Features:

  • Finger scanning window size is 16.26 x 24.38mm
  • Image resolution is 320x480 pixels, 500 DPI, 8 bit grey level.
  • Raw fingerprint image file size is 150K byte
  • With Live Finger Detection (LFD) feature
  • USB 2.0 compatible, plug and play device
  • Unique serial number programmed to USB Device Descriptor
  • With 16K Byte memory for application-specific data storage
  • With a 2M standard USB cable
  • Small size, 66 x 66 x29 mm
  • Light weight, 150 gram
  • Operation temperature: -10 to +55 C
  • Relative Humidity : 0-90% non-condensing

FS88H uses advanced CMOS sensor technology and precise optical system to meet the rigorous requirement on fingerprint image quality of PIV 071006. Its fingerprint scanning window is crown glass with a thickness of 14mm that resists scratches and other stress to ensure long term heavy duty usage. It is a robust but cost effective single finger capture device and ideal for border control, identity card, driver license, election and any type of civilian AFIS application.

Special electronic circuit is built into FS88H to do Live Finger Detection (LFD). With appropriate software in PC, user can select this LFD feature so that only live finger's fingerprint will be scanned into PC. Fake fingers made from silicon rubber, playdoh etc, will be rejected. And the LFD feature is included in all Futronic standard software.

A unique serial number is factory programmed into the USB Device Descriptor of each FS88H. So every FS88H is traceable and this is very important for government identity management projects.

FS88H_89H_brochure_v2.pdf
Download
