Yeastar IPPBX P560

Users: 100 (up to 200) Max Concurrent Calls: 30 (up to 60) Max Analog Ports: 8 Max BRI Ports: 8 Max Cellular Ports: 4 Max E1/T1/J1 Ports: 1 Expanion Boards: 1*EX30/EX08+1*D30 External Storage: USB, HDD

Front panel

Yeastar P560 supports 1 expansion board. You can install either EX08 board or EX30 board according to your needs.

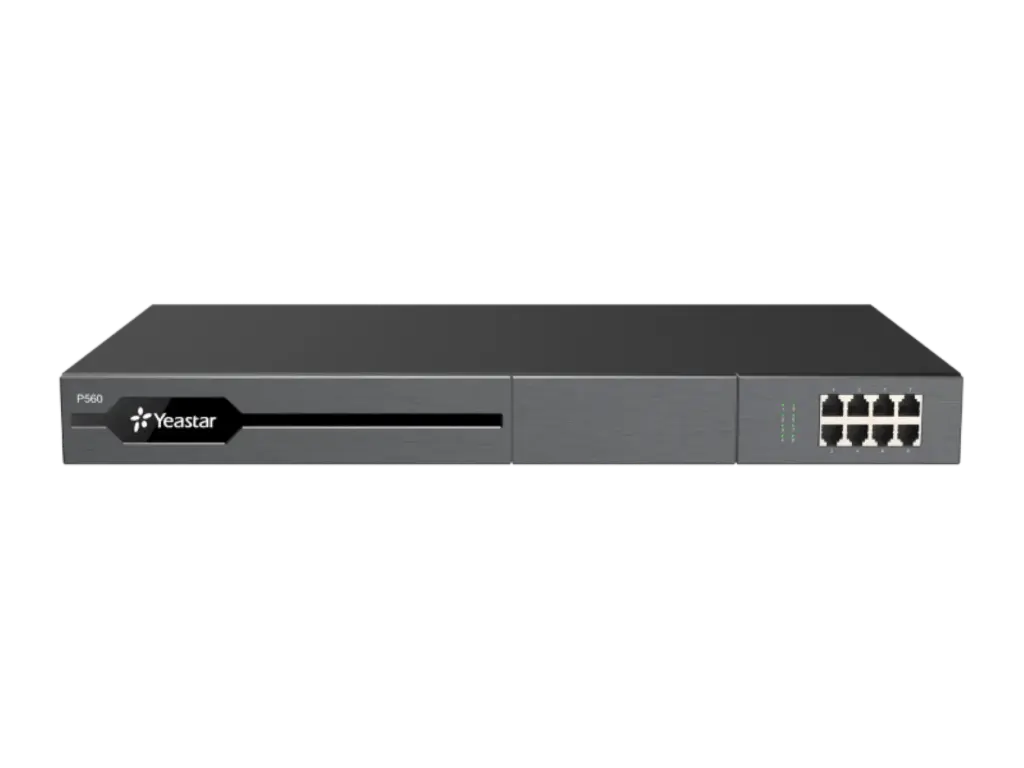

FigureYeastar P560 front panel with an EX08 expansion board FigureYeastar P560 front panel with an EX30 expansion board

No.Interface or Expansion BoardDescription
①NFC tagTap NFC-capable mobile phone's back against Yeastar logo to quickly configure network settings.
②EX08 Expansion Board

Up to 4 modules and 8 RJ11 ports are supported on the expansion board.

The 8 RJ11 ports can be used to connect to different objects:

  • FXS port (green light): For the connection of analog phones or fax machines.
  • BRI port (orange light): For the connection of BRI lines.
  • FXO port(red light): For the connection of PSTN lines or FXS ports of traditional PBX.
③EX30 Expansion BoardUsed to connect an E1/T1/J1 line.

Rear panel

No.Indicator, Button, or InterfaceDescription
①Reset buttonPress the button to restore to factory defaults.
②System IndicatorIndicate the system status.
  • Blinking: The system is working properly.
  • Static/Off: The system goes wrong.
③Power IndicatorIndicate the power status.
④SD SlotInsert an SD card to store recording files, voicemails, or logs.
⑤USB SlotInsert a USB flash drive to storage recording files, voicemails, or logs.
⑥WAN Port

For connection to Wide Area Network (WAN).

⑦LAN PortFor connection to Local Area Network (LAN).
⑧ConsoleConnect RS232 line to debug the system.
⑨Power SwitchPress this button to switch on/off the device.
⑩Power InletConnect the supplied power supply to the port.
⑪Protective EarthConnect to the ground to reduce the risk of electrocution to the user or protect the PBX from bad effects of external noise in case of a lightning strike.
⑫Antenna SocketRotate the antenna into the Antenna Socket.
