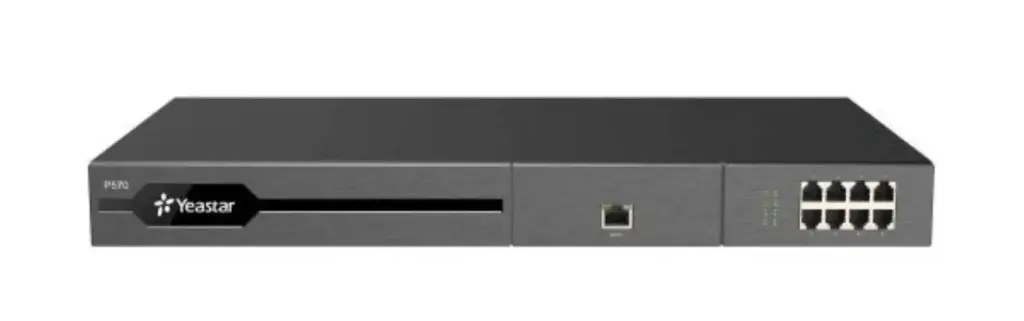

• [P570] Yeastar IPPBX P570

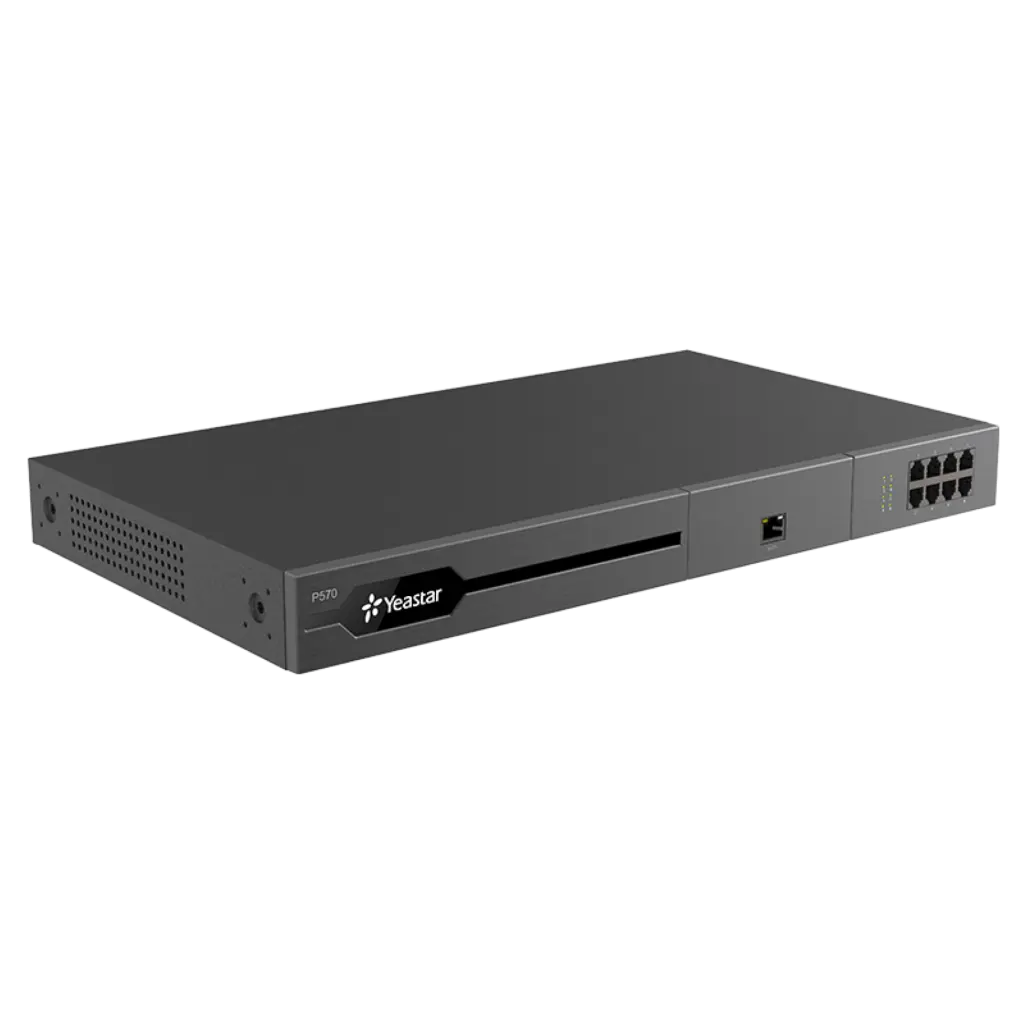

Yeastar IPPBX P570

Users: 300 (up to 500) Max Concurrent Calls:60 (up to 120) Max Analog Ports: 16 Max BRI Ports: 16 Max Cellular Ports: 6 Max E1/T1/J1 Ports: 2 Expansion Boards: 2*EX30/EX08+2*D30 External Storage: USB, HDD

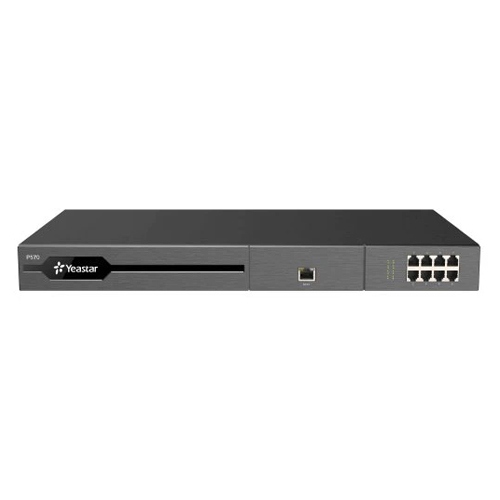

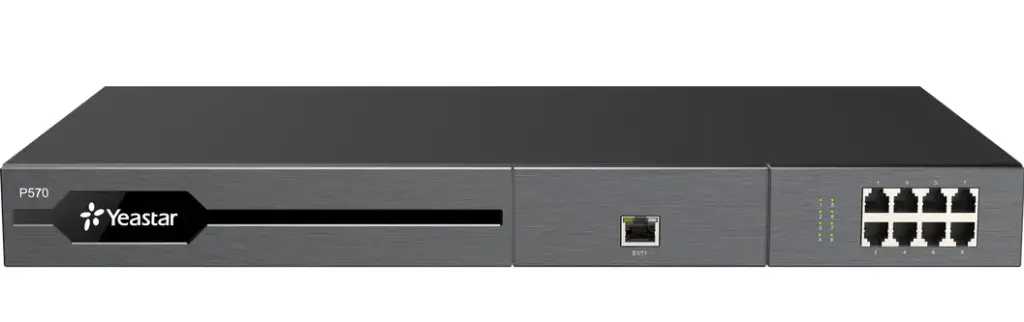

Front panel

Yeastar P570 supports 2 expansion boards. You can install EX08 board or EX30 board according to your needs.

No.Interface or Expansion BoardDescription
①NFC tagTap NFC-capable mobile phone's back against Yeastar logo to quickly configure network settings.
②EX30 Expansion BoardUsed to connect an E1/T1/J1 line.
③EX08 Expansion Board

Up to 4 modules and 8 RJ11 ports are supported on the expansion board.

The 8 RJ11 ports can be used to connect to different objects:

  • FXS port (green light): For the connection of analog phones or fax machines.
  • BRI port (orange light): For the connection of BRI lines.
  • FXO port(red light): For the connection of PSTN lines or FXS ports of traditional PBX.

Rear panel

No.Indicator, Button, or InterfaceDescription
①Reset buttonPress the button to restore to factory defaults.
②System IndicatorIndicate the system status.
  • Blinking: The system is working properly.
  • Static/Off: The system goes wrong.
③Power IndicatorIndicate the power status.
④SD SlotInsert an SD card to store recording files, voicemails, or logs.
⑤USB SlotInsert a USB flash drive to storage recording files, voicemails, or logs.
⑥WAN Port

For connection to Wide Area Network (WAN).

⑦LAN PortFor connection to Local Area Network (LAN).
⑧ConsoleConnect RS232 line to debug the system.
⑨Power SwitchPress this button to switch on/off the device.
⑩Power InletConnect the supplied power supply to the port.
⑪Protective EarthConnect to the ground to reduce the risk of electrocution to the user or protect the PBX from bad effects of external noise in case of a lightning strike.
⑫Antenna SocketRotate the antenna into the Antenna Socket.
