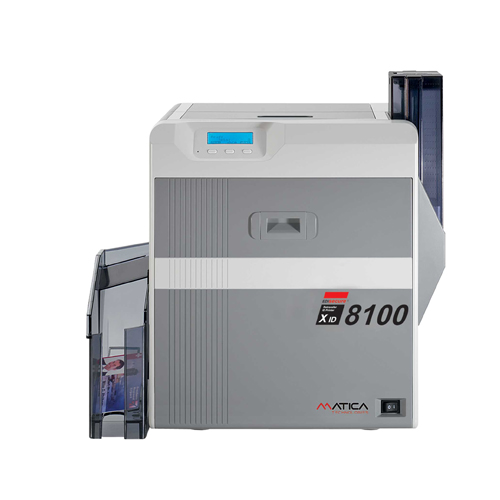

Matica XID8100 DS Retransfer Printer

Premium Retransfer Quality with Edge-to-Edge Printing:

The XID8100 employs dye‑sublimation retransfer technology, which allows printing over-the-edge—eliminating white borders and ensuring vibrant, full-bleed graphics, even on uneven surfaces or chip-embedded cards cardsplus.co.za+15matica.com.ua+15Bar Code Nepal+15. It delivers a sharp 300 dpi resolution, ideal for high-fidelity photos, intricate logos, microtext, and secure visual elements unicard.in. With a metal frame chassis ensuring precision and durability, it’s suitable for premium ID, access control, or membership cards requiring professional print aesthetics.

Key Features:

• Print Method
  • Dye-sublimation retransfer.
• Print Mode
  • Dual sided over-the-edge retransfer printing.
• Print Speed
  • Up to 102 cards per hour (single sided).
• Print Resolution
  • 300 dpi.
• Printhead
  • Lifetime warranty (using EDIsecure® materials).
• Card Types
  • PVC, Composite PVC, ABS, PET;
  • Polycarbonate Cards of ISO ID -1/CR-80 size, 85.60 x 53.98 mm.
• Card Thickness
  • 0.25 - 1.02 mm (hopper adjustment required).
• Input Hopper Capacity
  • 200 cards (0.76 mm).
• Output Hopper Capacity
  • 100 cards (0.76 mm).
• Interface
  • USB 2.0;
  • Ethernet.
• Operating System Support
  • Windows XP, 7, 8 Printer.
• Dimensions
  • 343 x 322 x 360 mm (WxDxH).
• Weight
  • 13.9 kg (excluding optional built-in items).
• Power Supply
  • 100/120 V and 220/240 V, 50/60 Hz FCC, CE, UL, GOST-R, and CCC approved.
• Operating Environment
  • 15°C to 30°C, 35% to 70% non condensing humidity.

Modular Design for Scalability and Security:

Built on a modular platform, the XID8100 comes standard in single-sided configuration, with optional flipper packs for dual-sided printing, plus bend-remedy modules, lamination units, and encoding upgrades available anytime. Encoding options include magnetic stripe, contact chip, and contactless smart card (NFC) support, catering to diverse use cases such as secure credentials, transit cards, and payment badges. Inline lamination modules add an extra layer of protection physically and in data security—ideal for high-wear or tamper-sensitive cards.
