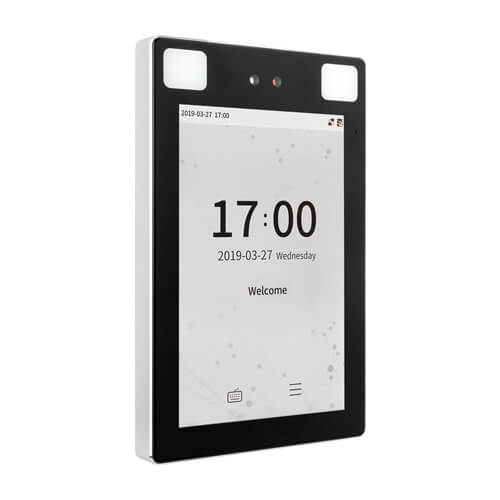

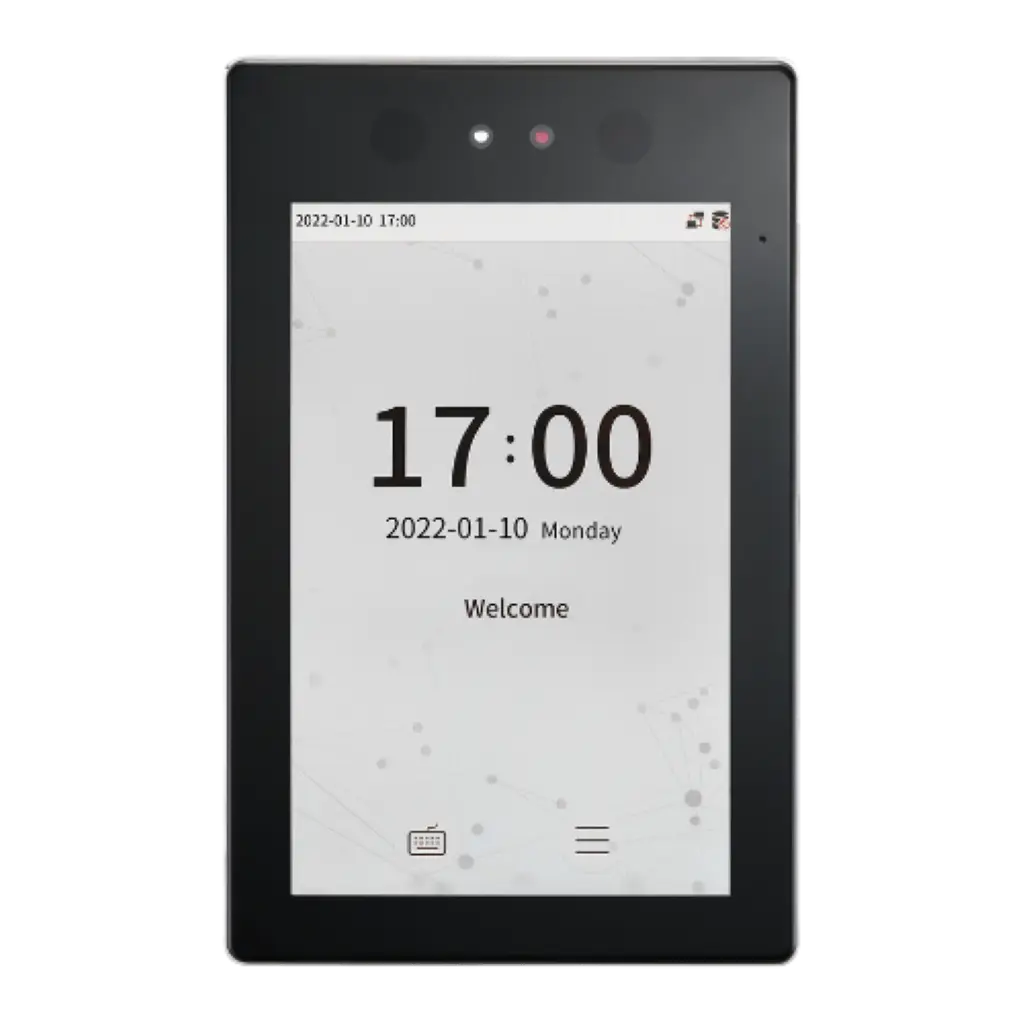

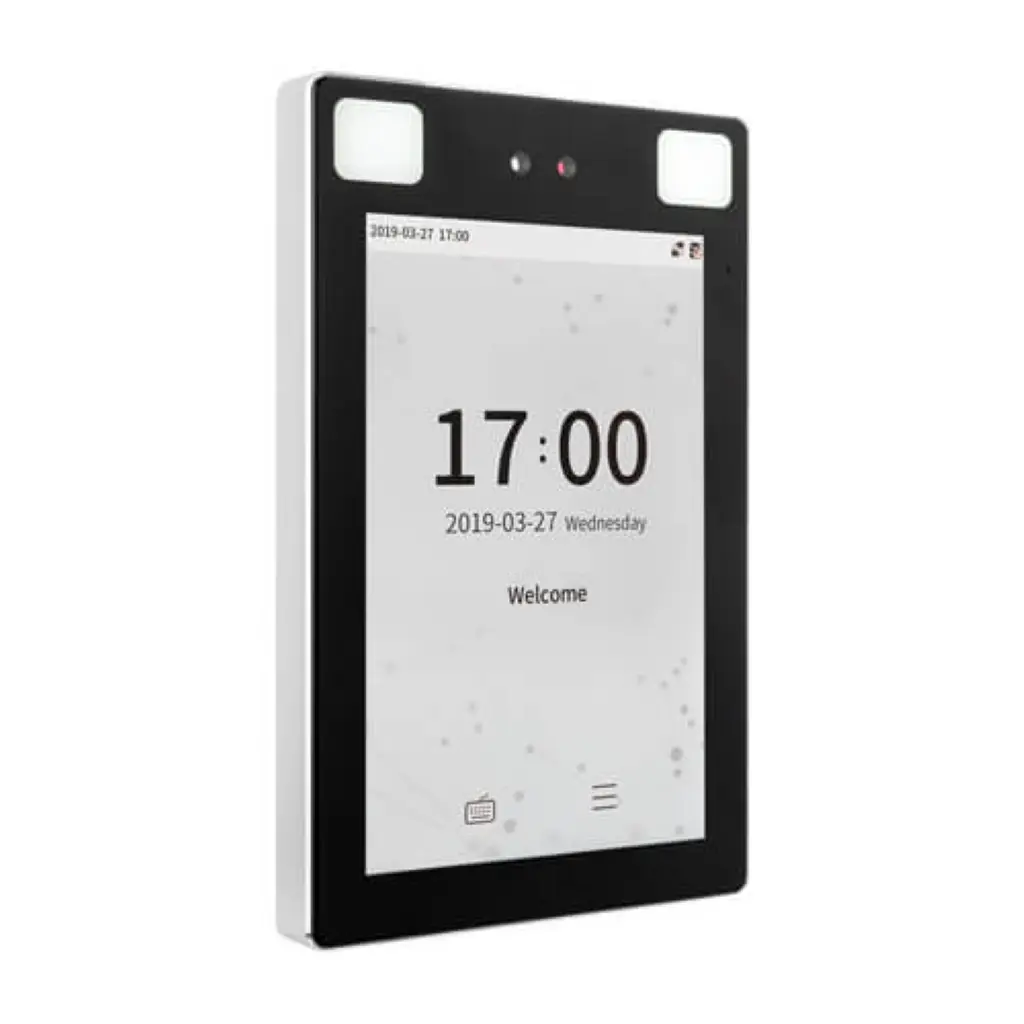

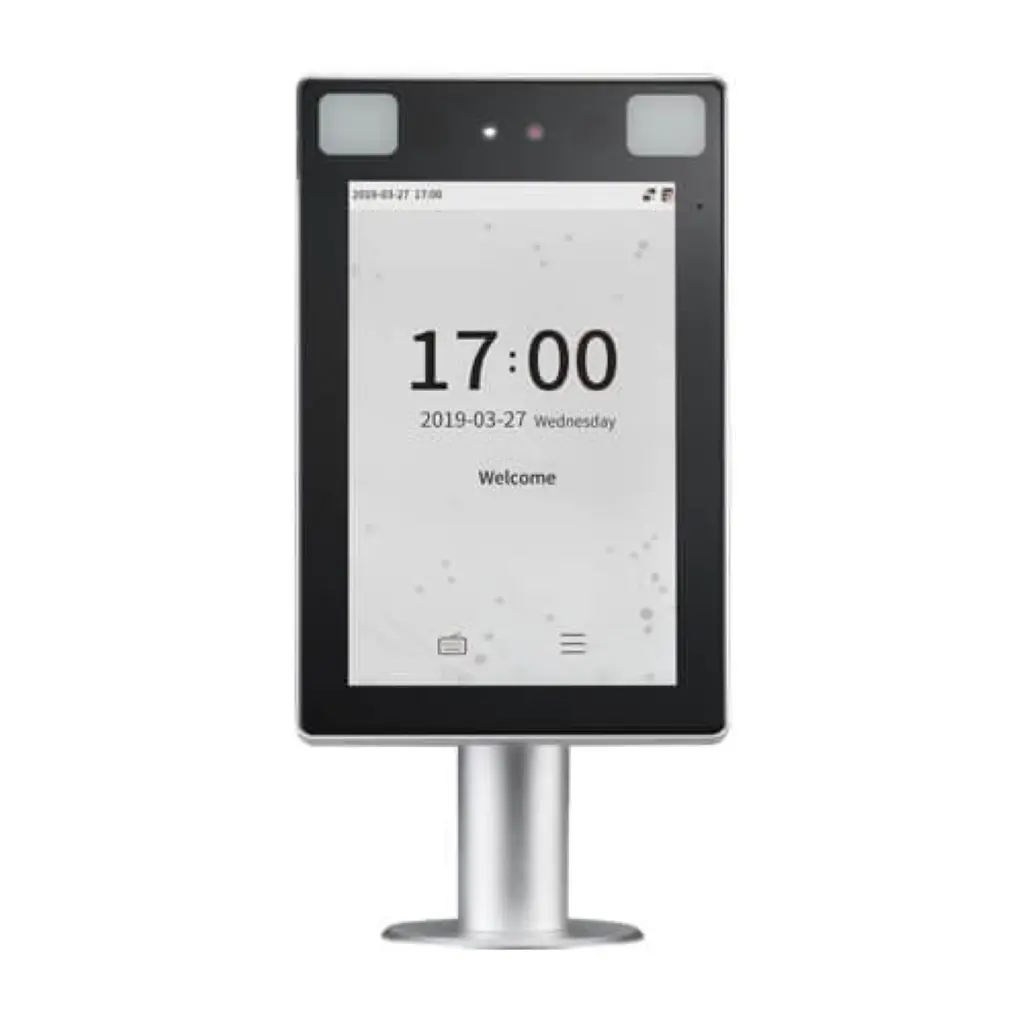

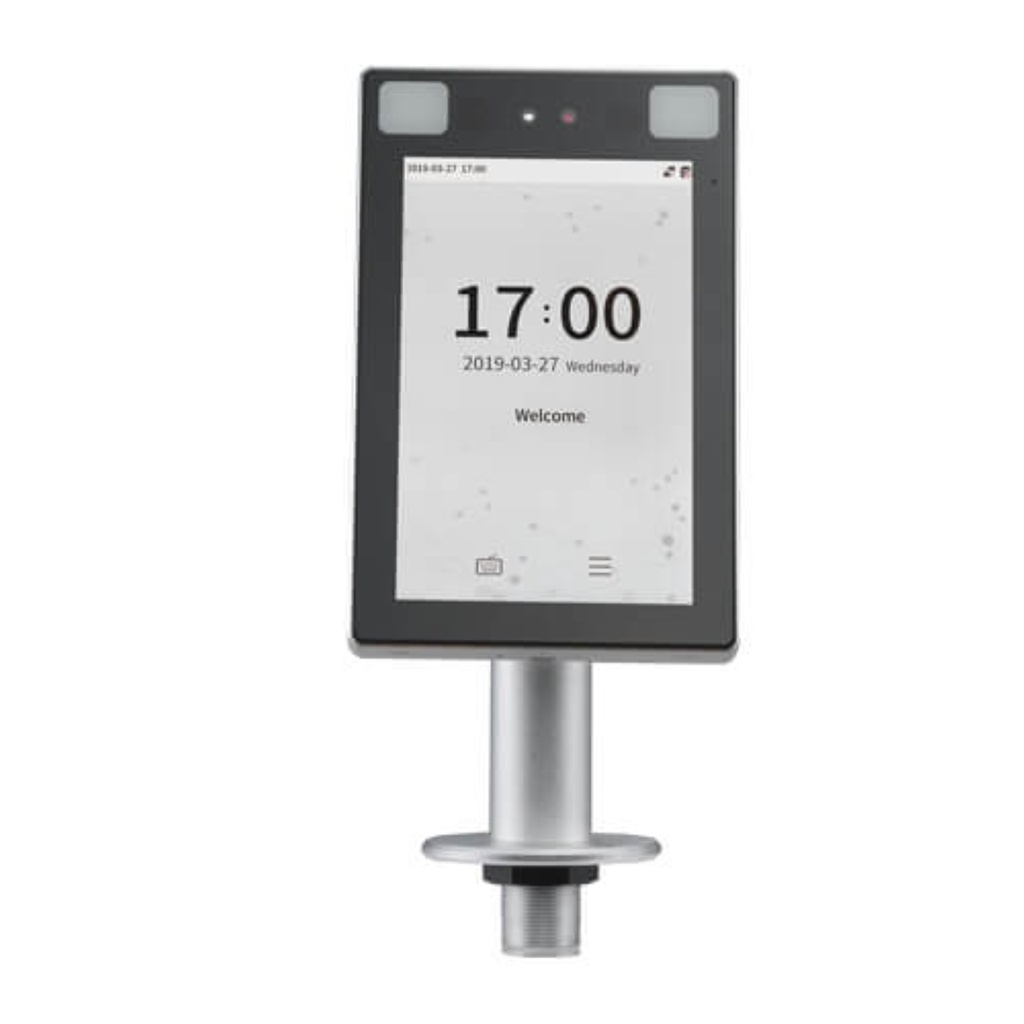

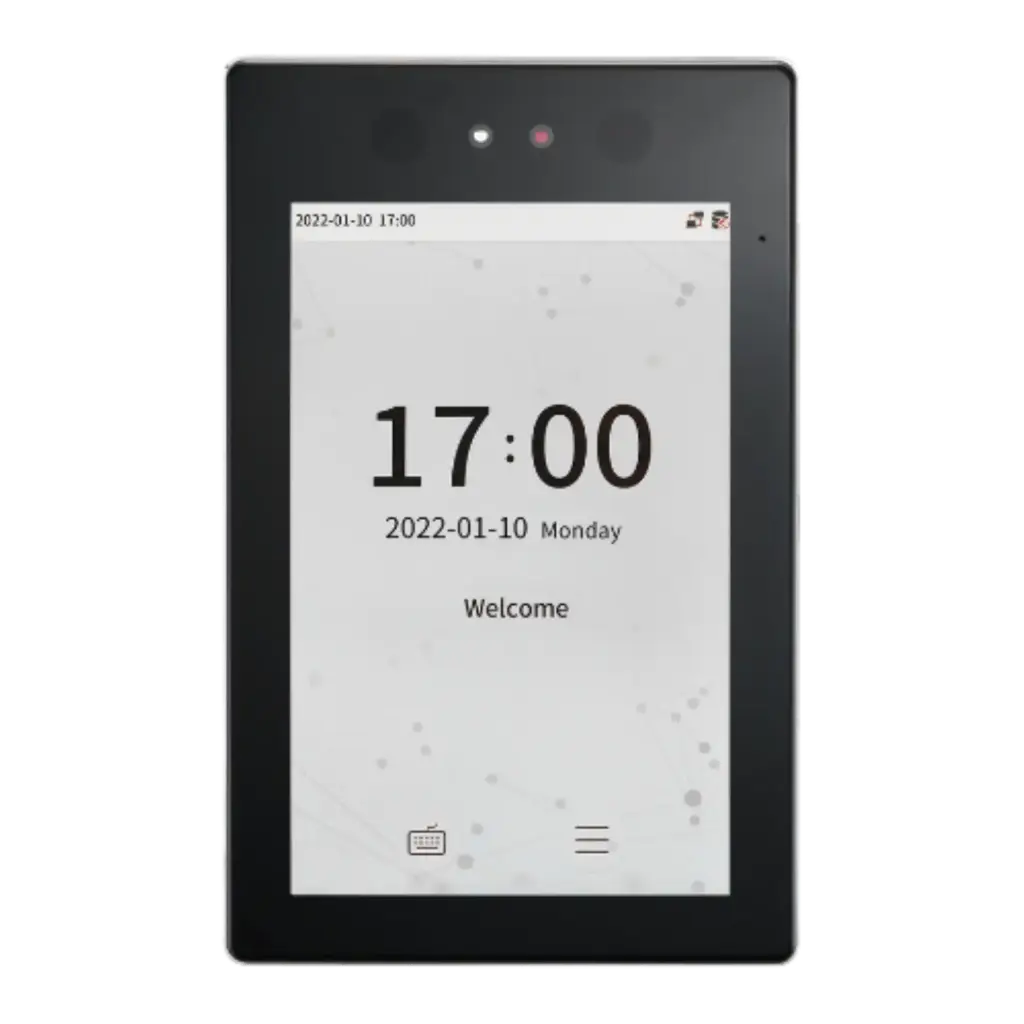

ZKTeco ProFace X

Face Capacity

30,000 (1:N);

Palm

5000 (Customized)

Users/Card Capacity

50,000

Transaction Capacity

1,000,000 (Optional 2,000,000)

User Photo Capacity

30,000

Event Photo Capacity

10,000

Security Relay Box

Wiegand/ RS485 Slave Reader with FP/ RFID/ Barcode/ QR-Code

Software: ZKBio CVSecurity

Mobile App: ZSmart(Optional)

Hardware

1GHz Dual Core Customized Computer Vision CPU

1G RAM/8G Flash

8'' (400lux) IPS Touch LCD

125khZ EM Reader/ 13.56MHz MF (Optional)

2MP WDR Low Light Camera

Adjustable Light Brightness LED

Hi-Fi Voice

Microphone

Distance Detection Sensor

Reset Button and Tamper Switch

Access Control Interface

Lock Relay Output/ Alarm Output/ Auxiliary Input/ Exit Button/ Door Sensor

Special Function

IP68 & IK04

0.3 High Speed Face Verification

Live Face Detection

Communication Https Encrypted Optional

Event Snapshot

Video Intercom

ONVIF Protocol (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A)

SIP Protocol (Compatible with VT07-B01, Optional)

Standard Function

Access Levels, Groups Holidays, DST, Duress Mode(Password), Anti- Passback, Record Query, Custom Wallpaper & Screen Saver, Tamper Switch Alarm

TCP/ IP/ Wiegand Input/ Output/ Wi-Fi(Optional) / RS485*/ RS232*

Algorithm

ZKFace 3.9 & ArmaturaPalm (Customized)

Operating Temperature

-30 Degree Celsius ~ 60 Degree Celsius (-22 Degree Fahrenheit ~ 140 Degree Fahrenheit

Operating Humidity

<93%

Net Weight

853g

Dimension

227*143*26mm (L*W*D)

Operating Voltage

12V DC

Current Draw

<2,000 mA

Dust and Waterproof
