ZKTeco SC105 ID

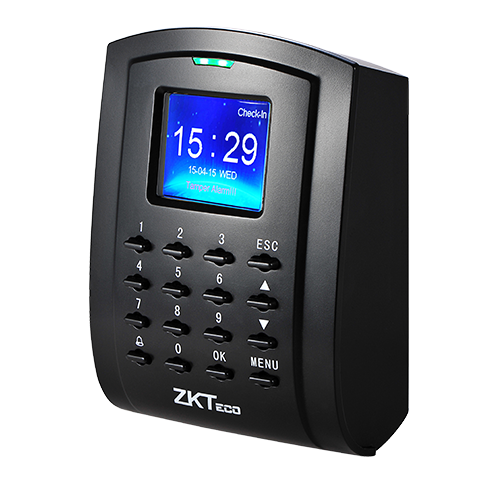

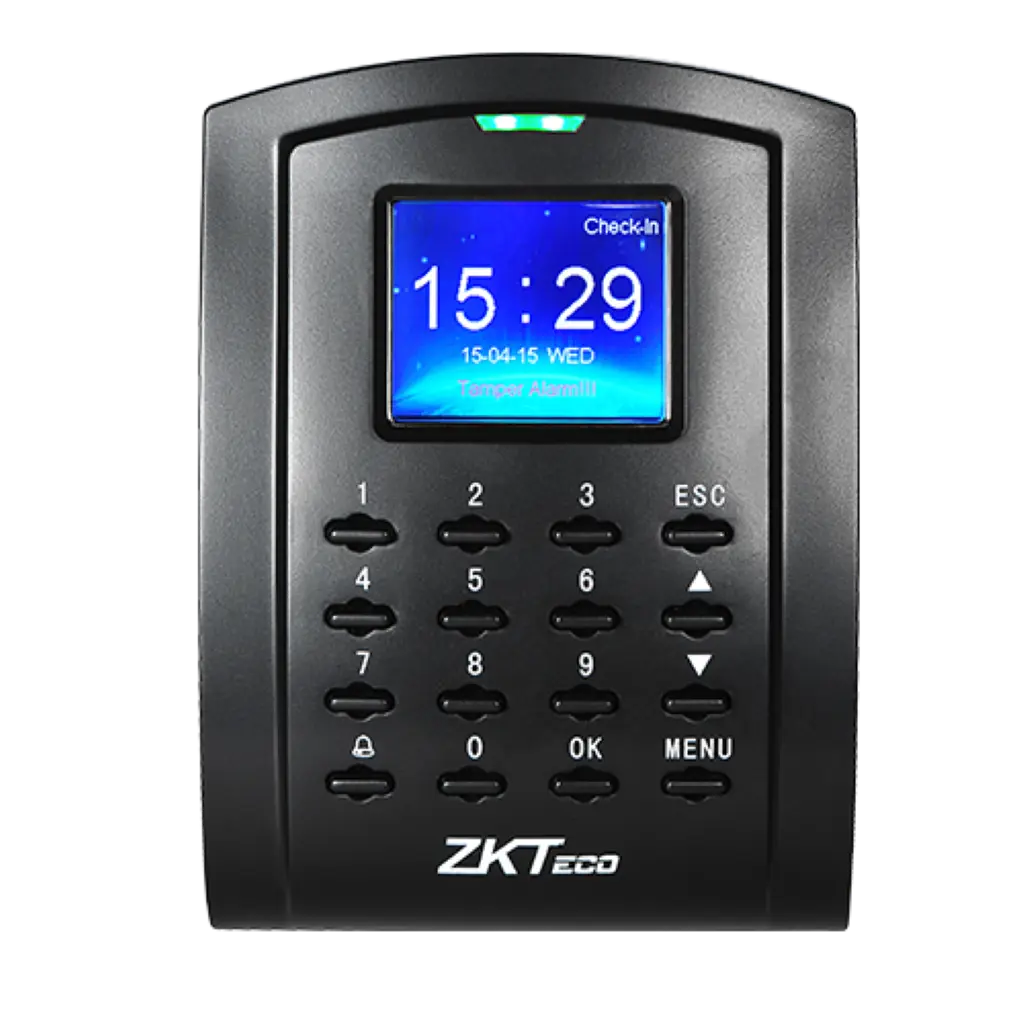

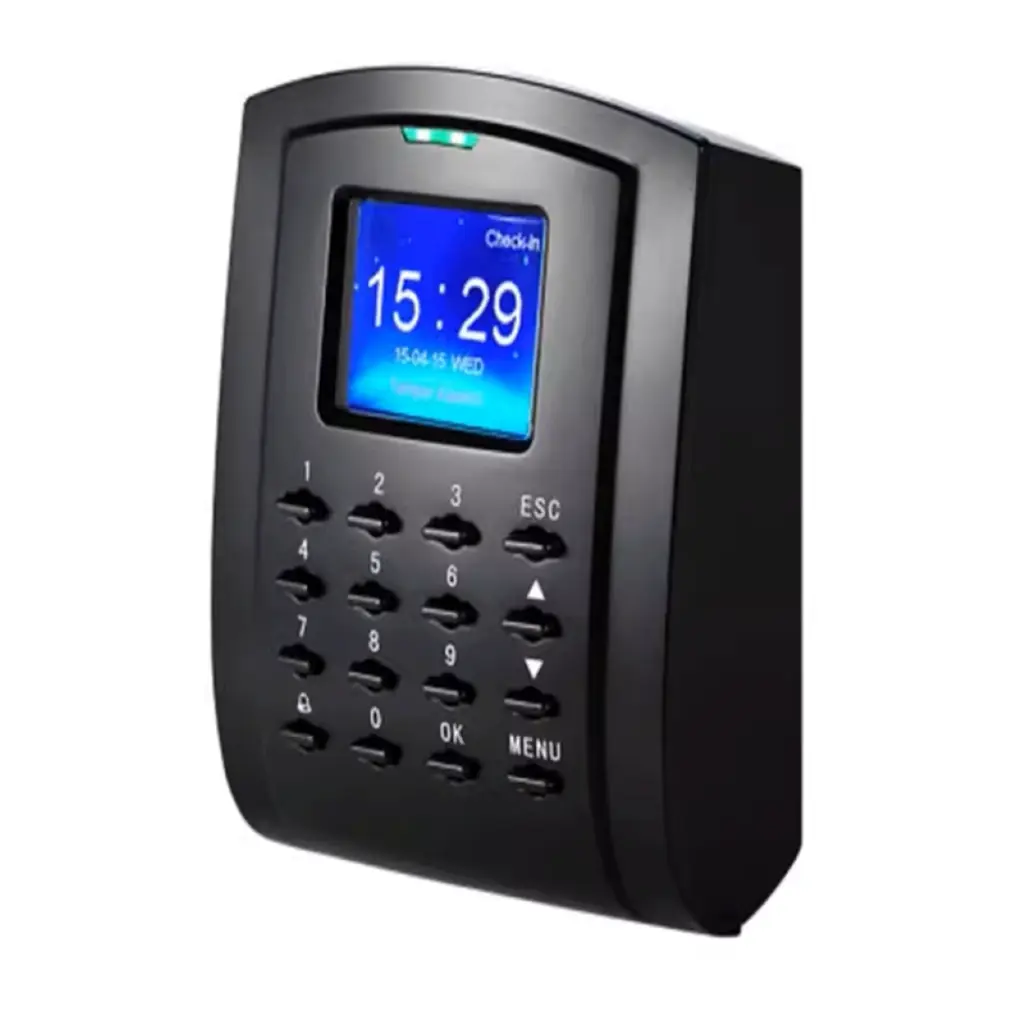

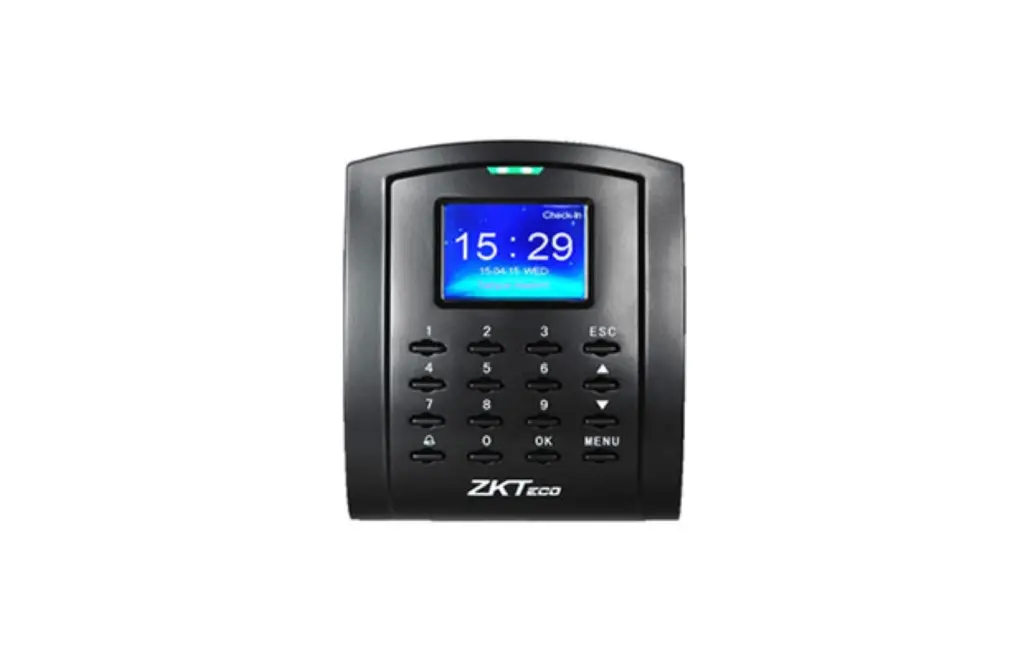

SC105 is a RFID Access Control Terminal which possesses a 2.0-inch color display with graphical UI, enabling simple and easy control. It has a built-in auxiliary input function which enhances the flexibility to be connected with wired detector or emergency switch. With multi-verification methods by combinations of PIN, password and card, high level of security and flexibility are guaranteed. Moreover, the product supports USB flash drive for offline data management, as well as is equipped with multiple alarm outputs such as Tamper Proof Switch and Duress Alarm. Its convenience and adaptability allow it to be well deployed in residential housing, offices and any other public facilities.
Specifications:
Card Capacity | 30,000 |
Transaction Capacity | 80,000 |
Communication | TCP / IP, RS485*, USB-Host |
Interfaces for Access Control | 3rd party electric lock, door sensor, exit button, alarm, doorbell |
Auxiliary Interface | 1ea for linkage function |
Wiegand Signal | Output and Input, SRB |
Standard Functions | ID Card, Automatic Status Switch, Self-Service Query, DST, 9 Digit User ID, Scheduled Bell, Anti-pass back, HTTPS, SSH, SRB |
Optional Functions | IC Card, Print Function, Felica Card, Webserver, Workcode |
Display | TFT LCD Color Screen |
Power Supply | DC 12V |
Operating Temperature | 0 Degree Celsius ~ 45 Degree Celsius |
Operating Humidity | 20% ~ 80% |
Dimension | 130*94*52mm (L**W*H) |
SDK | AC PUSH SDK |
Supported Software | ZKBio CVAccess |
