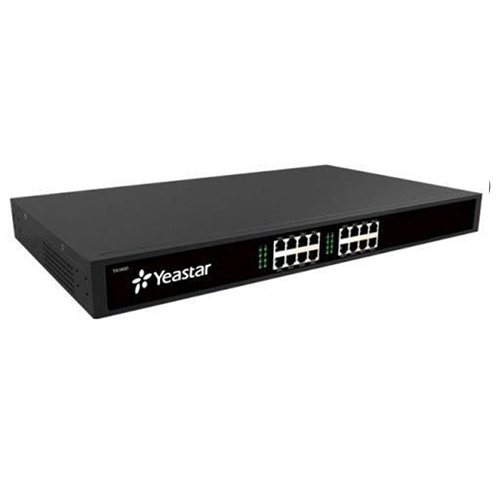

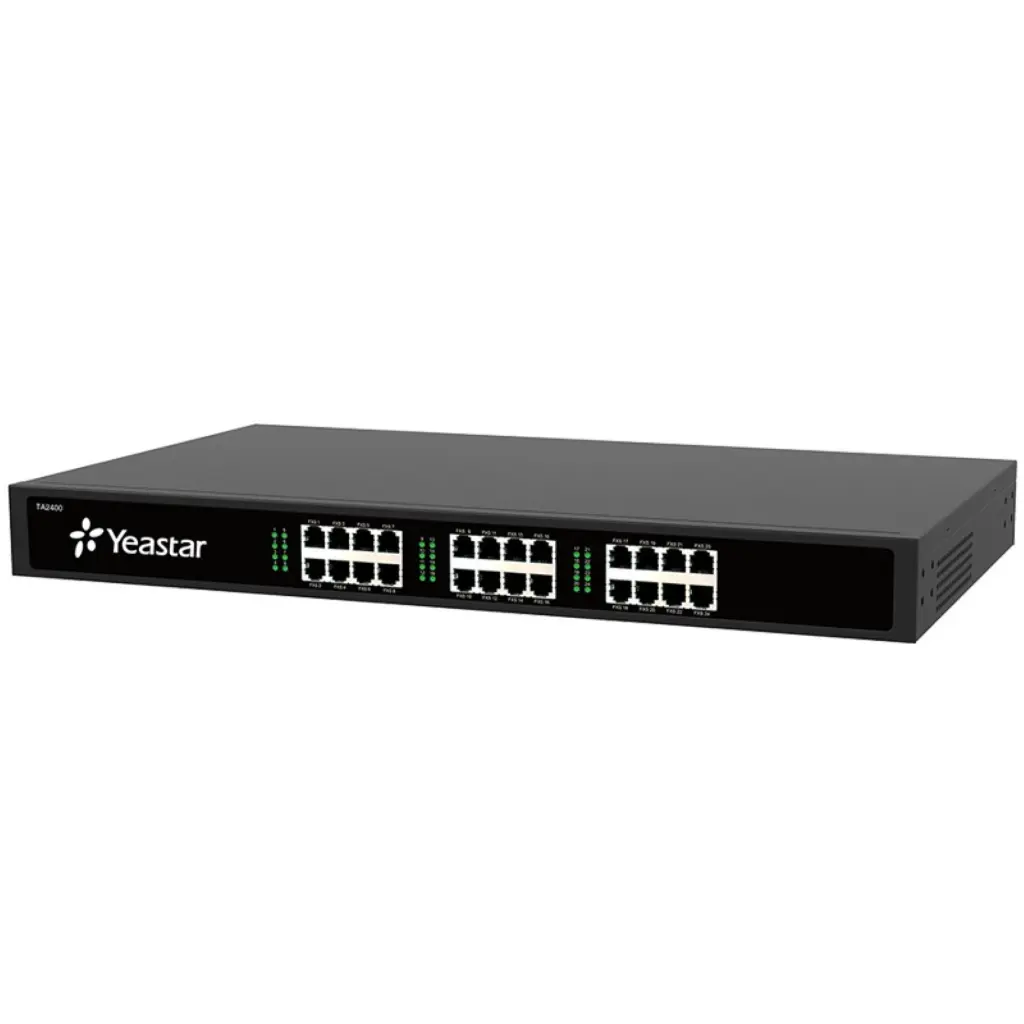

Yeastar TA2400 FXS VoIP Gateway
The Yeastar TA2400 is a high-density 24-port FXS VoIP gateway designed to connect analog telephones, fax machines, or PBX systems to VoIP networks. It enables businesses to preserve existing analog devices while migrating to IP telephony, offering reliable voice and fax performance, easy management, and seamless integration with IP-PBXs like Asterisk, 3CX, and Yeastar systems. Ideal for hotels, call centers, and enterprises needing large-scale analog-to-IP conversion.
Key Features:
- 24 FXS ports (RJ‑11 and RJ21 connector) to connect analog phones, fax machines, or paging devices
- SIP (RFC3261) & IAX2 protocol support for broad compatibility
- High-quality codecs — G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM, Speex
- Fax support via T.38 and pass-through for reliable analog-to-IP faxing
- ITU‑T G.168 echo cancellation, dynamic jitter buffer, Voice Activity Detection (VAD), Comfort Noise Generation (CNG), Packet Loss Concealment (PLC)
- DTMF support via RFC2833, SIP Info, and in-band signaling
- Network QoS: DiffServ, ToS, 802.1P/Q VLAN tagging
- Network features: DHCP, DDNS, OpenVPN, PPPoE, Static Routing, VLANs
- Security tools: built-in firewall, IP blacklist, attack alerts
- Management & provisioning: Web GUI, auto‑provisioning via PnP/DHCP, TR-069, SNMP, RADIUS, remote management
- Call handling features: 3-way conference, attended/blind transfer, call forwarding/holding, call detail records, speed dial, hunting groups, call waiting, caller ID display, do-not-disturb, hotline, MWI
- 1x 10/100 Mbps Ethernet port for LAN/WAN connectivity
- Transport security: Supports UDP, TCP, TLS, SRTP
- Interoperability: Certified with Asterisk, FreePBX, Elastix, BroadSoft, Lync/Skype for Business, 3CX
- Compact design (1U rack/desktop), low power usage, green and quiet operation
- Operational resilience: Caller ID options (BELL202, ETSI V23, NTT V23-Japan, DTMF), polarity/busy tone disconnect.
